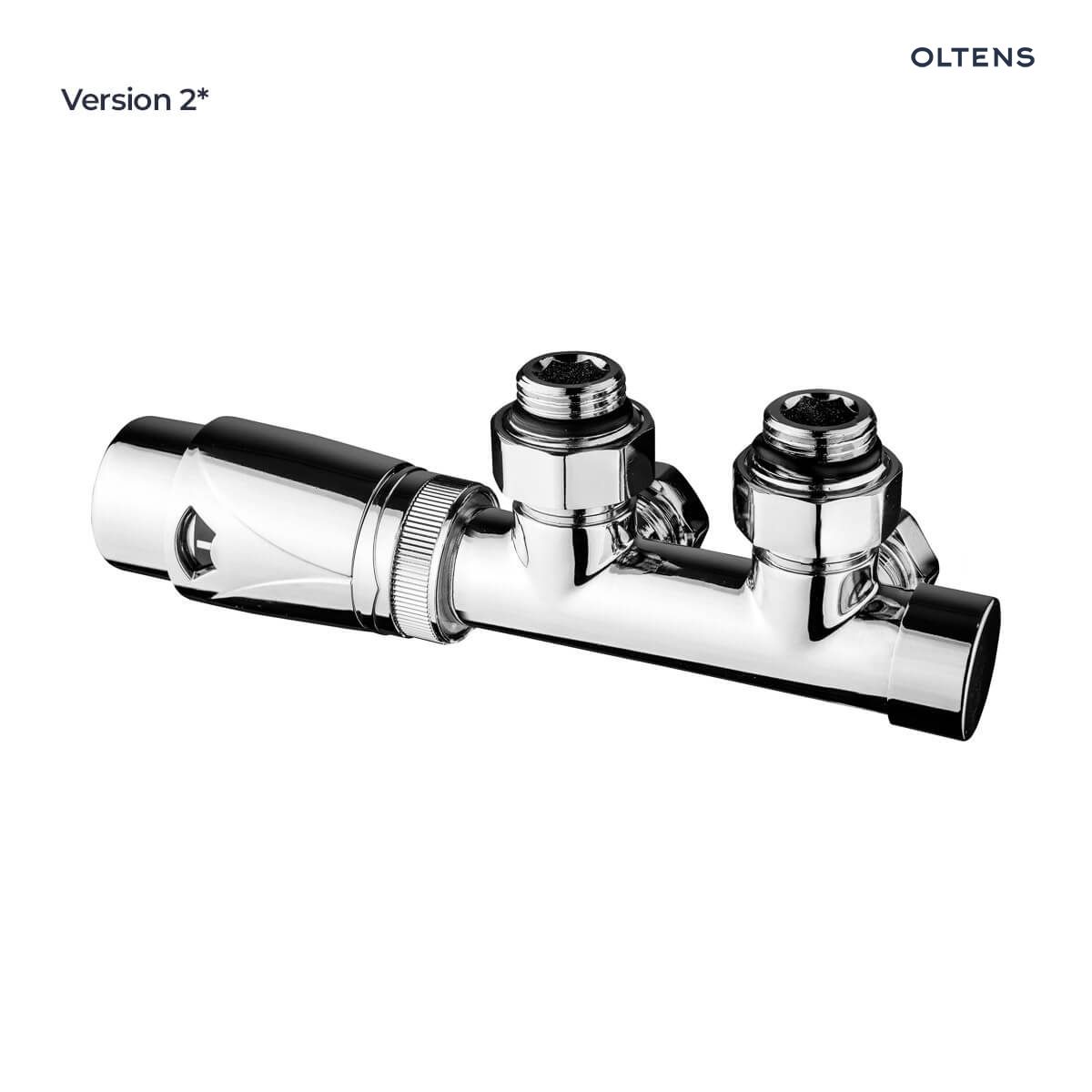

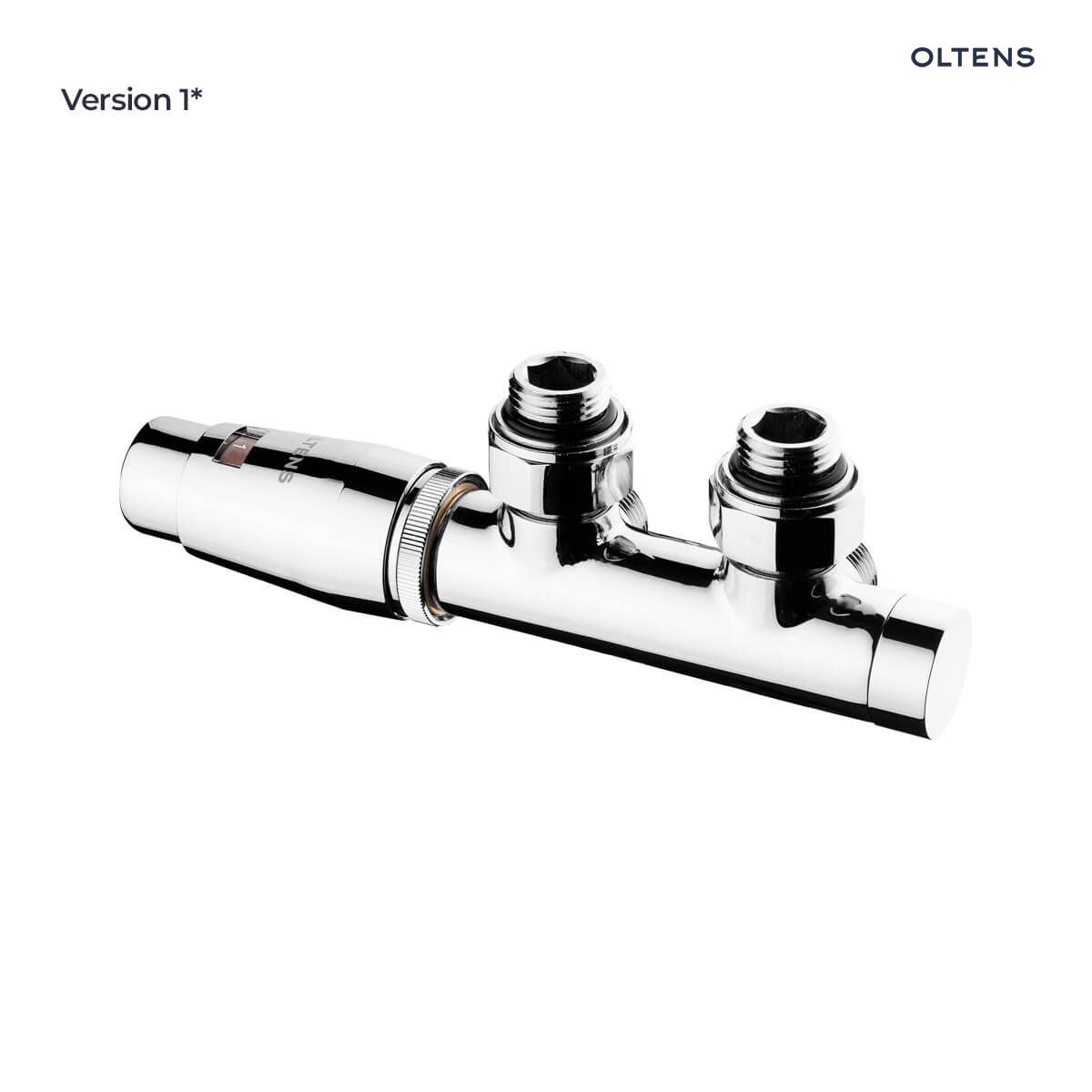

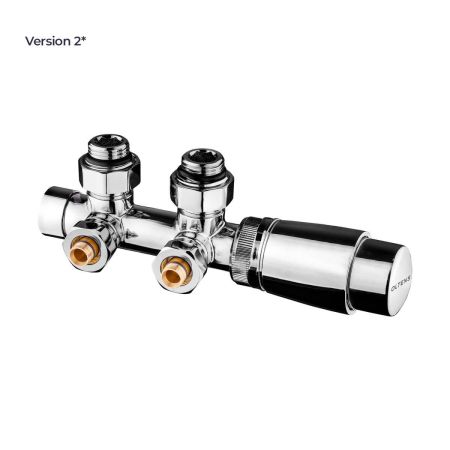

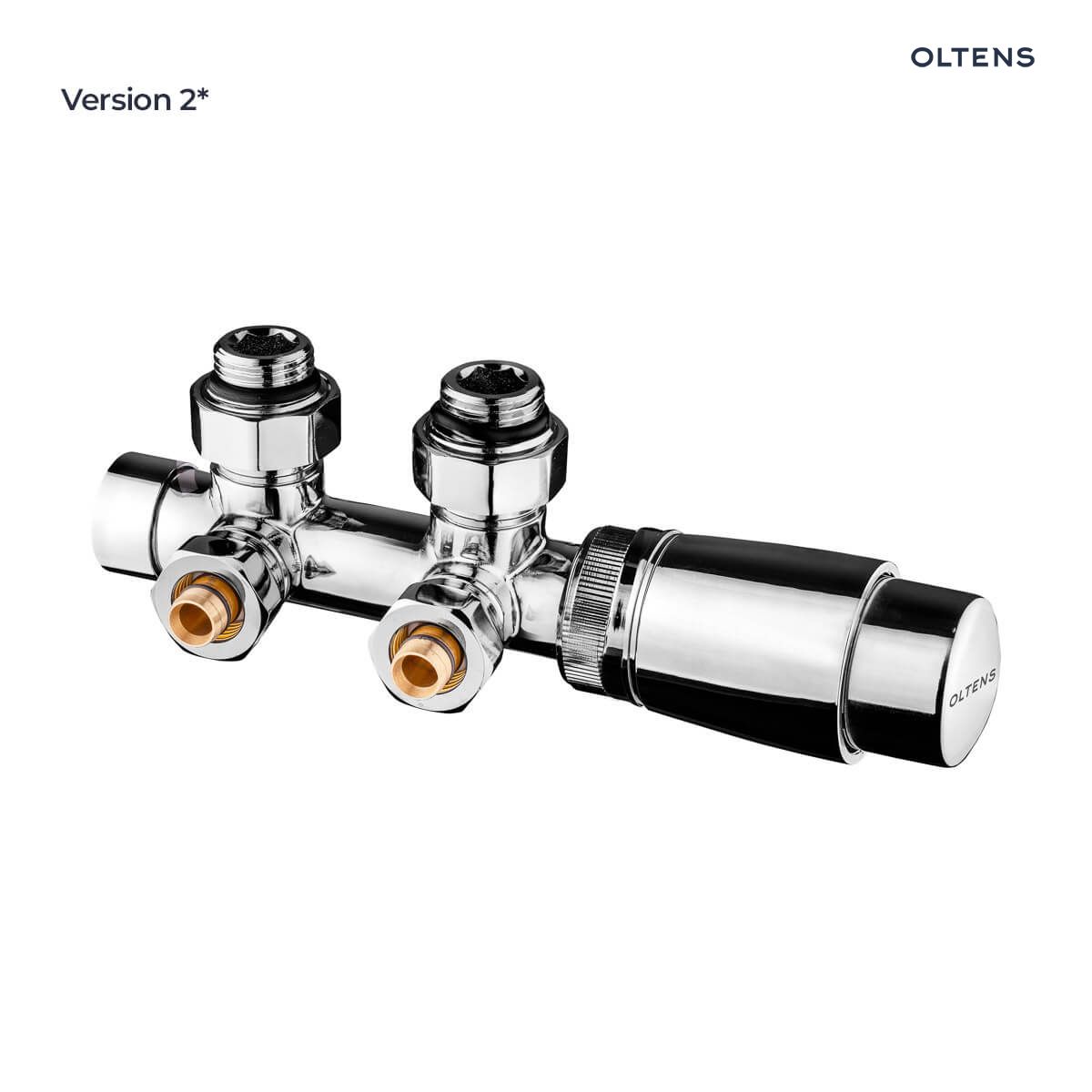

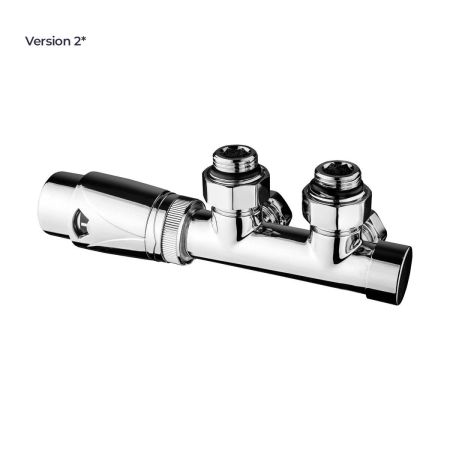

Oltens Varmare Ventil integrated radiator thermostatic set left chrome finish 55901100

A complete valve set for radiator assembly with middle connection of 50 mm spacing, the set includes the connecting block with embedded thermostatic valve, cut-off valve and thermostatic head.

- left variant
- temperature adjustment at the head From 8°C to 30°C scale markings* - 1 - 2 - 3 - 4 - 5 - 6 at the head
- max. heating agent temperature 120°C
- max. heating agent pressure 1 MPa
- max. pressure difference on the valve 0.06 Mpa
- head mounting thread M30 x 1,5 - maximum operating temperature of assembled head up to 40°C
- maximum temperature of head storage up to 50°C
- closing time 18 min.
- head at the supply side
- colour: chrome finish

All set elements in a colour consistent with Oltens radiators.
