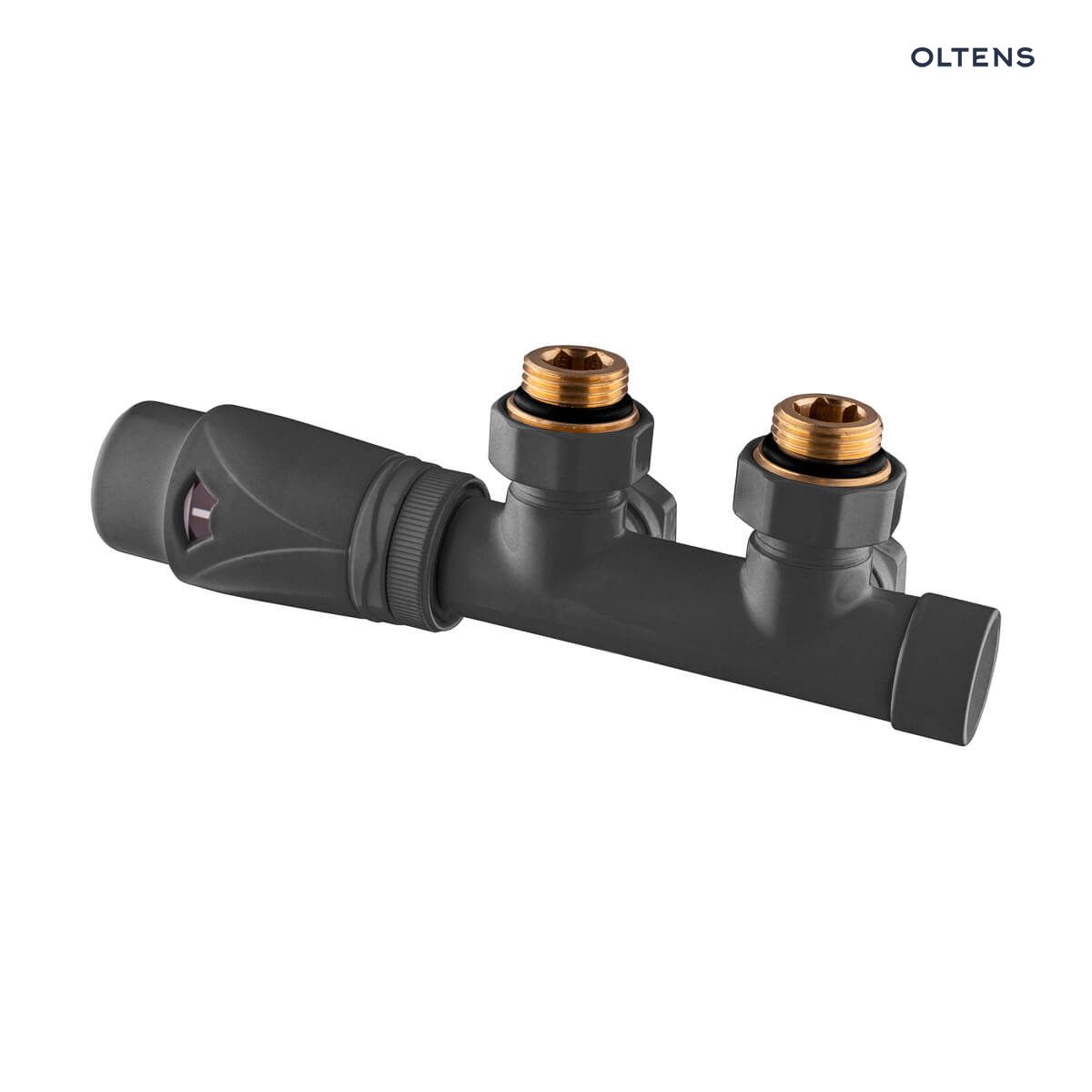

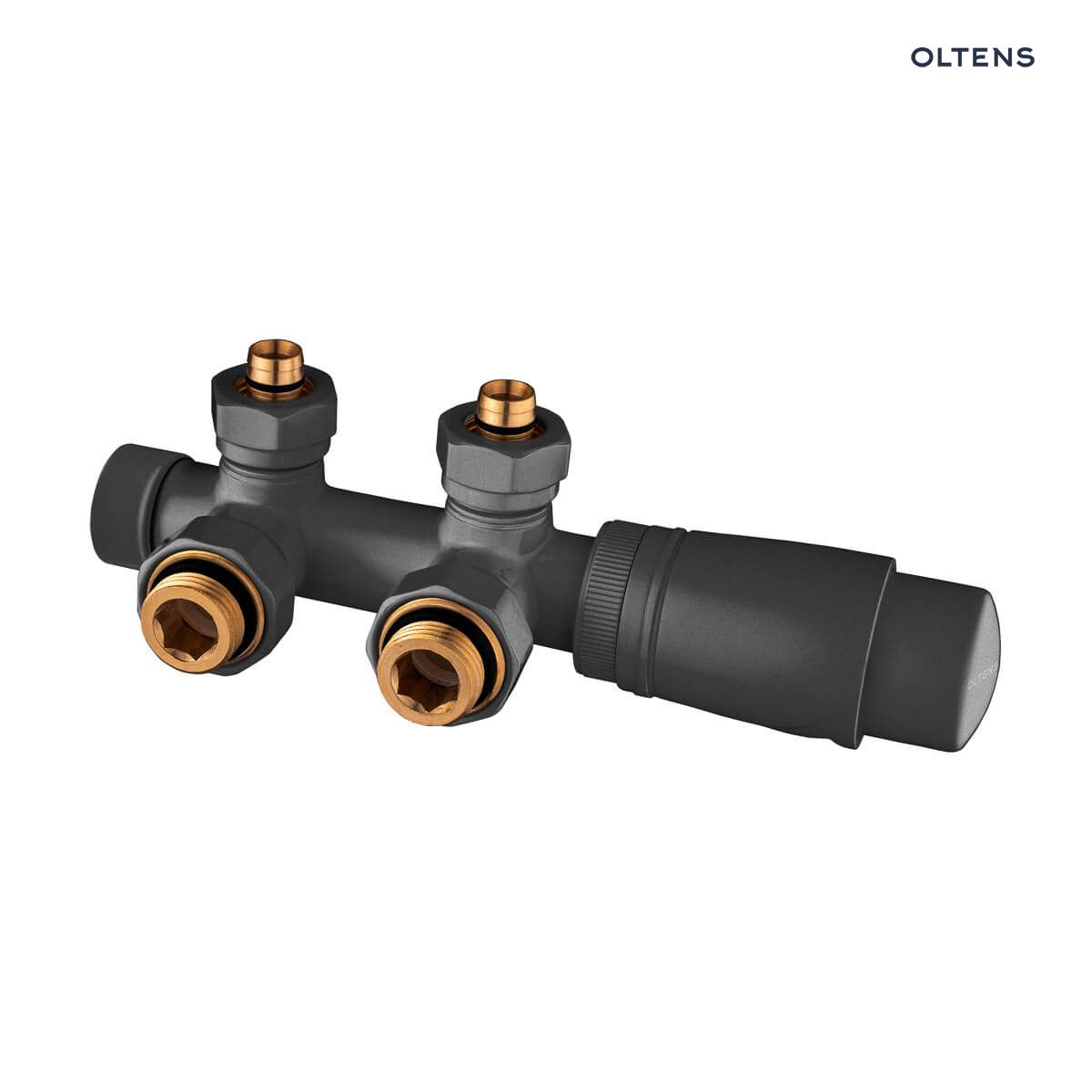

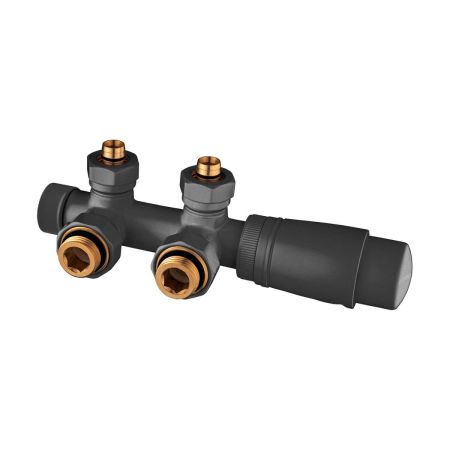

Oltens Varmare Ventil integrated thermostatic valve for radiators, left-hand, graphite, 55901400

A complete set of valves for fitting a radiator with a centre connection and a centre-to-centre distance of 50 mm; the set comprises a connection block with a built-in thermostatic valve, a shut-off valve and a thermostatic head. Suitable for installation in central heating systems made from 15x1 copper pipes as well as PEX/AluPEX 16x2 plastic pipes. All components of the kit are colour-coordinated with Oltens radiators.

-
left-hand version – temperature setting range on the thermostatic head from 8°C to 30°C (scale markings * – 1 – 2 – 3 – 4 – 5 – 6 on the thermostatic head)
– maximum heating medium temperature 120°C –
maximum heating medium pressure 1 MPa –
maximum pressure difference across the valve 0.06 MPa
– head mounting thread: M30 x 1.5 –
maximum operating temperature of the installed head: up to
40°C – maximum storage temperature of the head: up to
50°C – closing time: 18
minutes – colour: graphite
