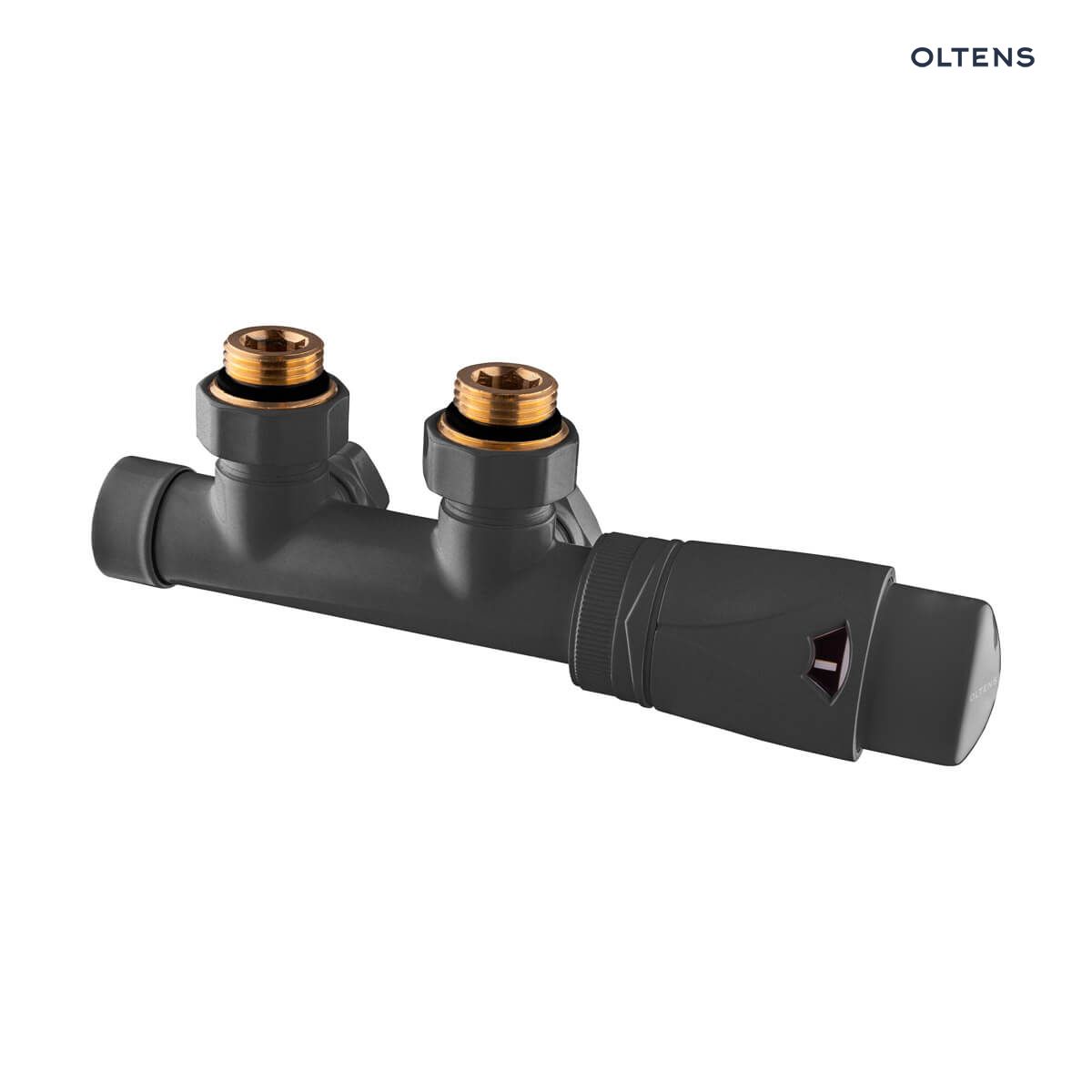

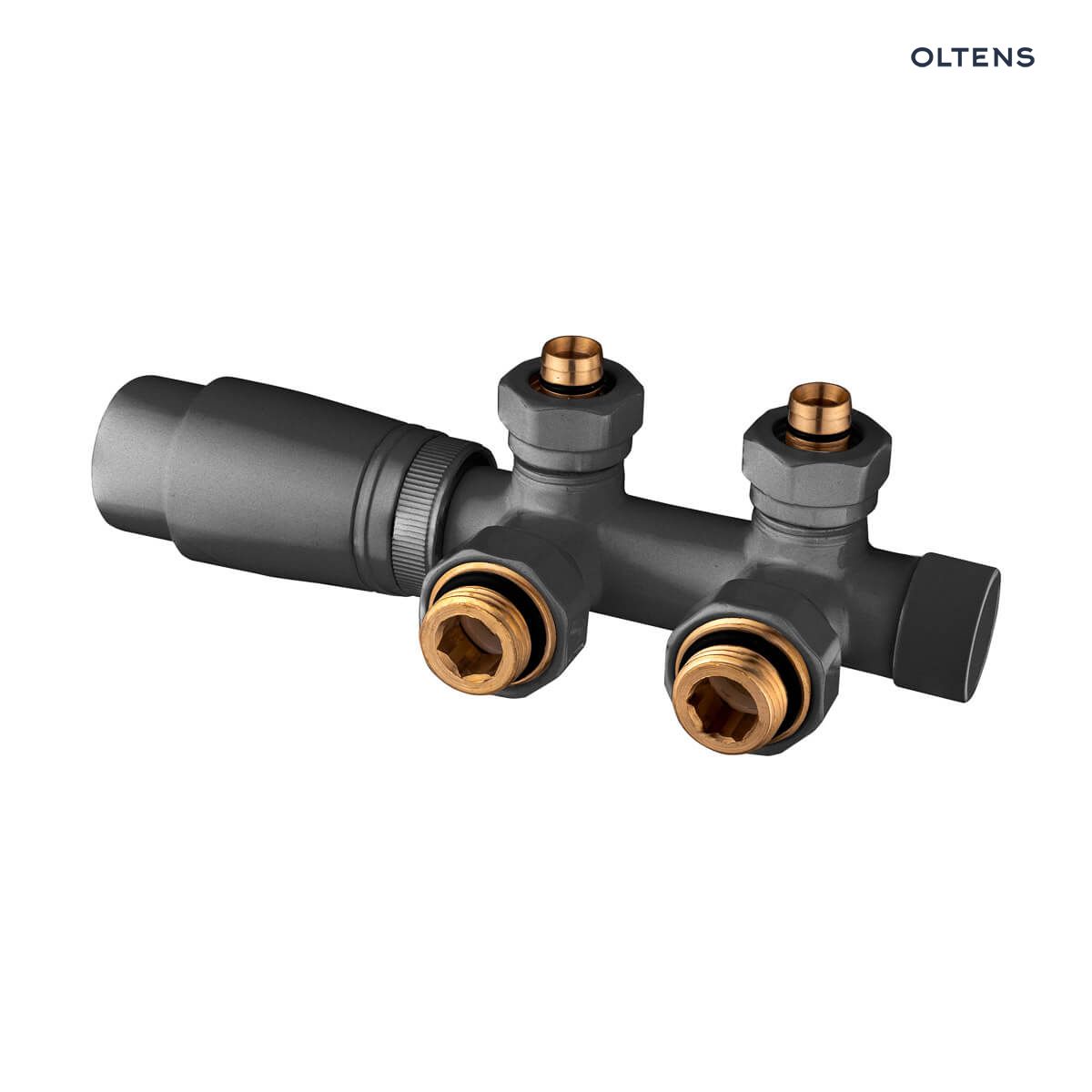

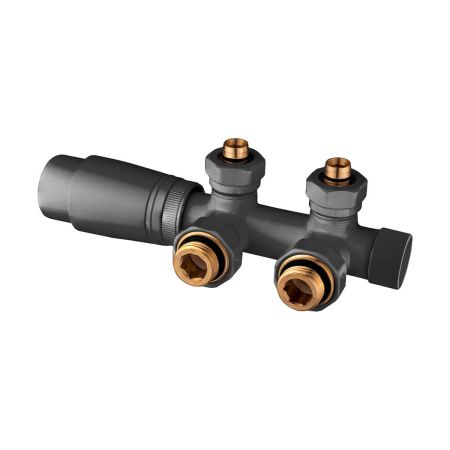

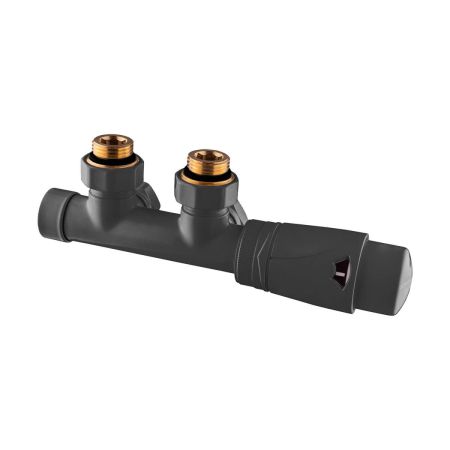

Oltens Varmare Ventil integrated thermostatic radiator valve set, right-hand, graphite, 55902400

A complete set of valves for fitting a radiator with a centre-to-centre distance of 50 mm; the set comprises a connection block with a built-in thermostatic valve, a shut-off valve and a thermostatic head. Suitable for installation in central heating systems using either 15x1 copper pipes or 16x2 PEX/AluPEX plastic pipes. All components in the set are colour-coordinated with Oltens radiators.

-
right-hand version – temperature setting range on the thermostatic head from 8°C to 30°C (scale markings * – 1 – 2 – 3 – 4 – 5 - 6 on the thermostatic head)
—heating medium temperature: max. 120°C
—heating medium pressure: max. 1 MPa
—pressure difference across the valve: max. 0.06 MPa
—thermostatic head mounting thread: M30 x 1.5
– maximum operating temperature of the fitted head: up to 40°C –
maximum storage temperature of the head: up to
50°C – closing time: 18
minutes – head on the
supply side – colour: graphite
